AIRFRAME

• • TOTAL TIME: 2,180
  • LANDINGS: 796

ENGINES: Honeywell AS907-2-1-G (Enrolled MSP Gold)

• • Serial: P-130319
  • TSN: 2,180
  • CSN: 796

• • Serial: P-130320
  • TSN: 2,180
  • CSN: 796

• • Serial: P-209
  • TSN: 1,806
  • CSN: 1,652

• • ENGINES: Enrolled on MSP Gold
  • AIRFRAME: Enrolled on MyCMP – Maintenance Tracking Program

• • Maximum Range: 3,600 NM (6,667 km) 1 NBAA IFR theoretical range @ Mach 0.80 with 4 pax, 2 crew & NBAA IFR res.
  • High Speed Cruise: Mach 0.84
  • Long-Range Cruise: Mach 0.80
  • Agile short-field takeoff and landing capabilities

AVIONICS DESCRIPTION:

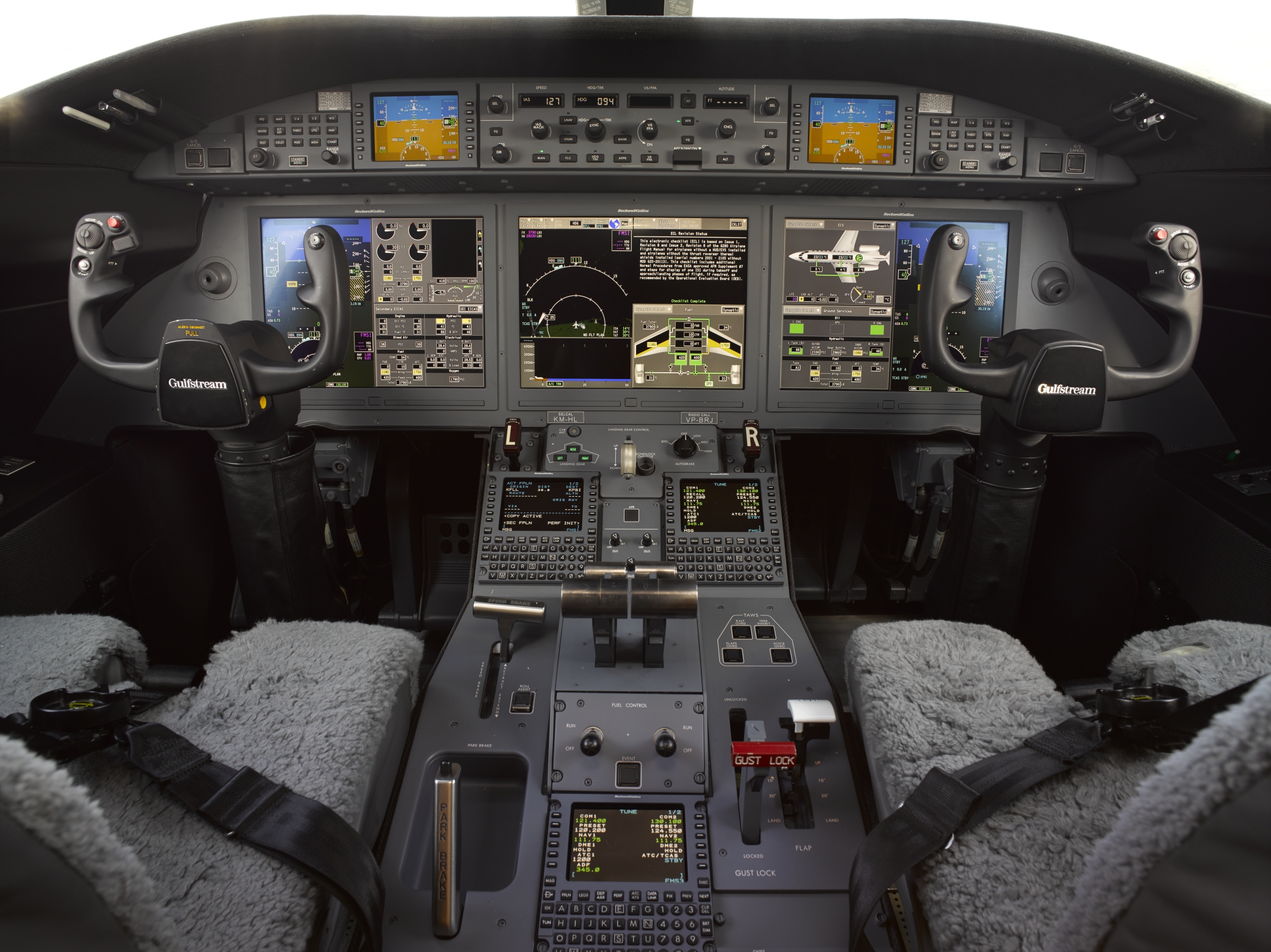

• • Rockwell Collins Fusion PlaneView 280TM flight deck.
  • Rockwell Collins Synthetic Vision (SVS)

AVIONICS EQUIPMENT:

• • COMMUNICATIONS: 3 Rockwell Collins VHF-4000 w/8.33 kHz
  • NAVIGATION: 3 Rockwell Collins NAV-4500/ NAV-4000
  • FLIGHT GUIDANCE SYSTEM: 2 Rockwell Collins AFCS (A/P YD and Dual FD)
  • AUTOTHROTTLE: Rockwell Collins Autothrottle System
  • RADAR: Rockwell Collins RTA-4118 Color Weather
  • TRANSPODER: Rockwell Collins TDR 94D Mode S enhanced Surveillance
  • AUTOMATIC DIRECTION FINDER: 2 Rockwell Collins NAV-4000
  • DISTANCE MEASURING EQUIPMENT: 2 Rockwell Collins DME-4000
  • HIGH FREQUENCY RADIO: 2 Rockwell Collins HF-9000 HF Radio
  • RADIO ALTIMETER: 2 Rockwell Collins ALT-4000 Radar Altimeter
  • AIR DATA COMPUTER: 2 Rockwell Collins ADC-3010 Air Data Comp.
  • ALTITUDE HEADING REFERENCE: 2 Honeywell Laseref VI Micro IRU
  • FLIGHT MGMT SYSTEMS – GPS: 3 Rockwell Collins FMS IMS6000 / CDU-6200
  • GPS-SENSOR: GPS-4000S 12-Channel GPS WAAS/LPV cert.
  • TERMINAL COLLISION AVOIDANCE: Rockwell Collins TCAS II, Change (7.1)
  • TERRAIN AWARENESS & WARNING: Rockwell Collins TPM-6000 TAWS
  • TELEPHONE: Aircell Axxess II SATCOM
  • ELT: Artex C406N Emergency Locator Transmitter
  • FDR/CVR: Penny and Giles, Enhanced Multipurpose FDR
  • WIFI -SWIFT BROAD BAND: (STCST04268AT-D) Cobham Aviator SDU7320
  • ADS-B OUT: (STC ST4026AT-D) Automatic Dependent Surveillance
  • FANS 1/A – ATN DATALINK / CPDLC (STC ST04288AT-D) Future Air Navigation Systems & Datalink
  • SATCOM: (STC ST04275AT-D) ICS-220A SATCOM System
  • SYNTHETIC VISION SYSTEM: (STC ST04024AT-D) SVS
  • TALON AEROSPACE LED:(STC ST04177AT-D)

INTERIOR:

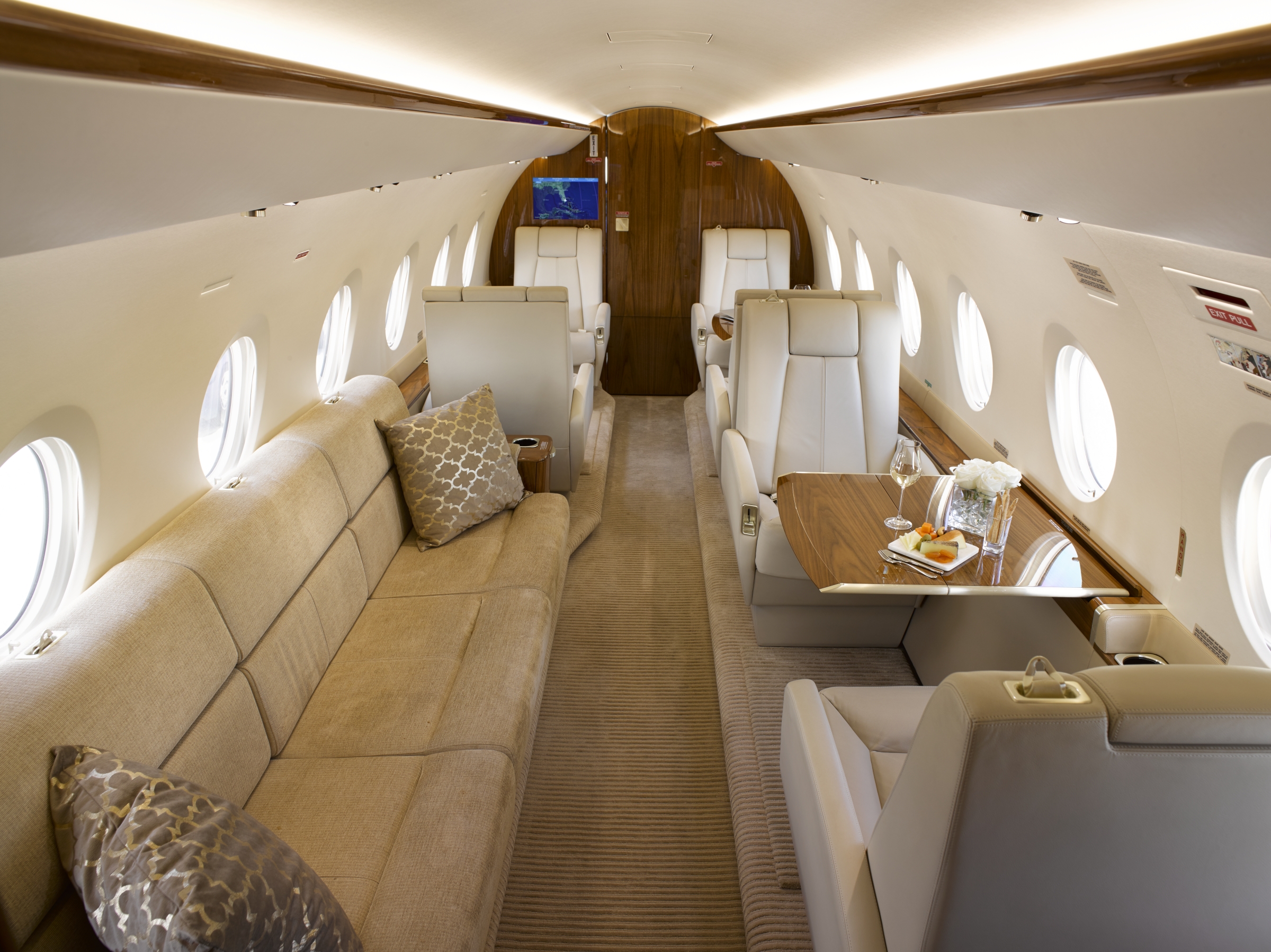

• 9 Passengers + 2 Flight deck Crew + 1 Observer-Jump Seat Configuration

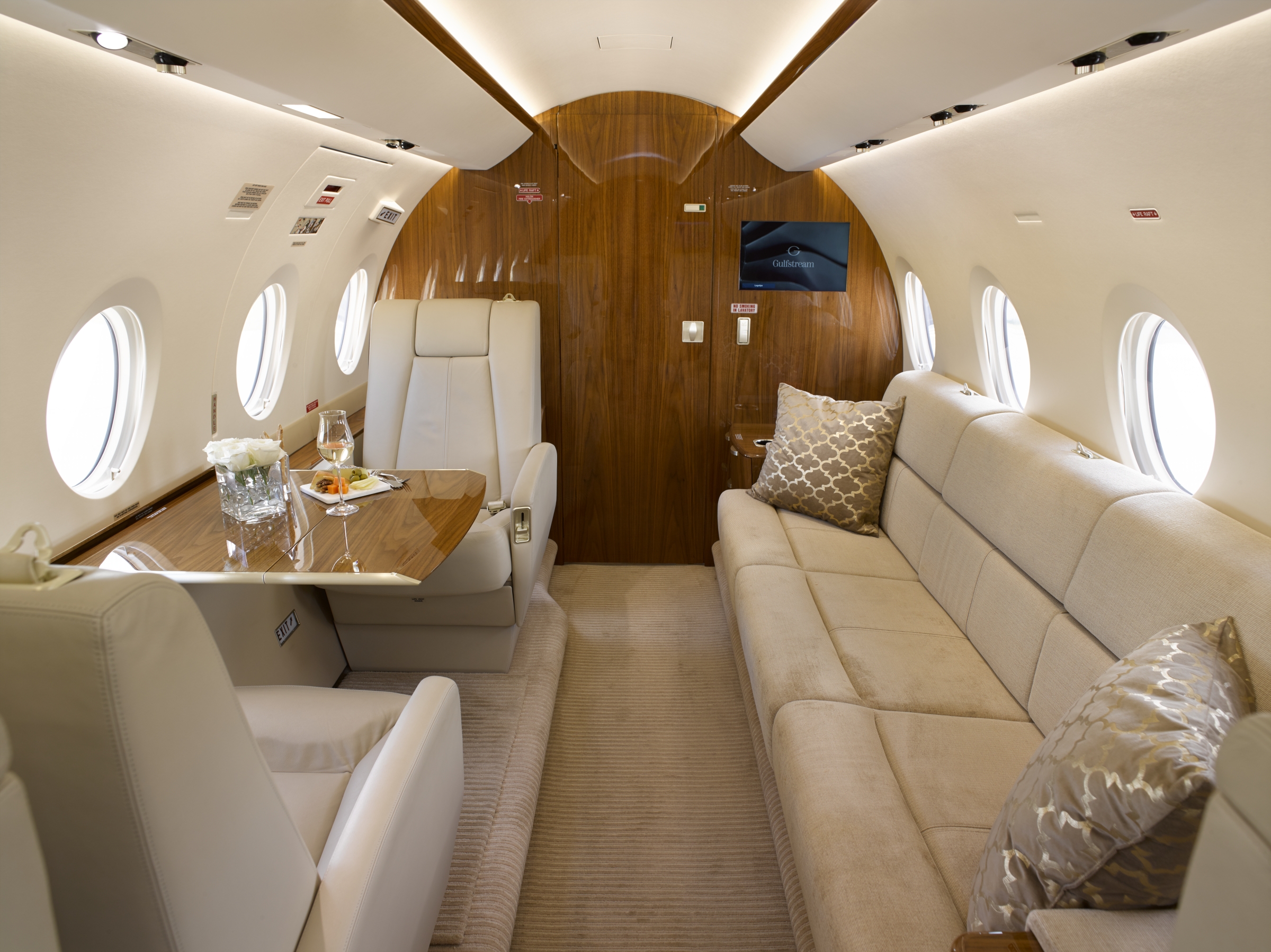

• Forward Cabin has 4 Seats in Club Arrangement with 2 Pullout Tables
• Aft Cabin has a 3 Place Berthable Divan opposite two individual seats in the single-club configuration
• Executive Cabin Interior (STC ST04266AT-D) Jump Seat (STC ST04271AT-D)

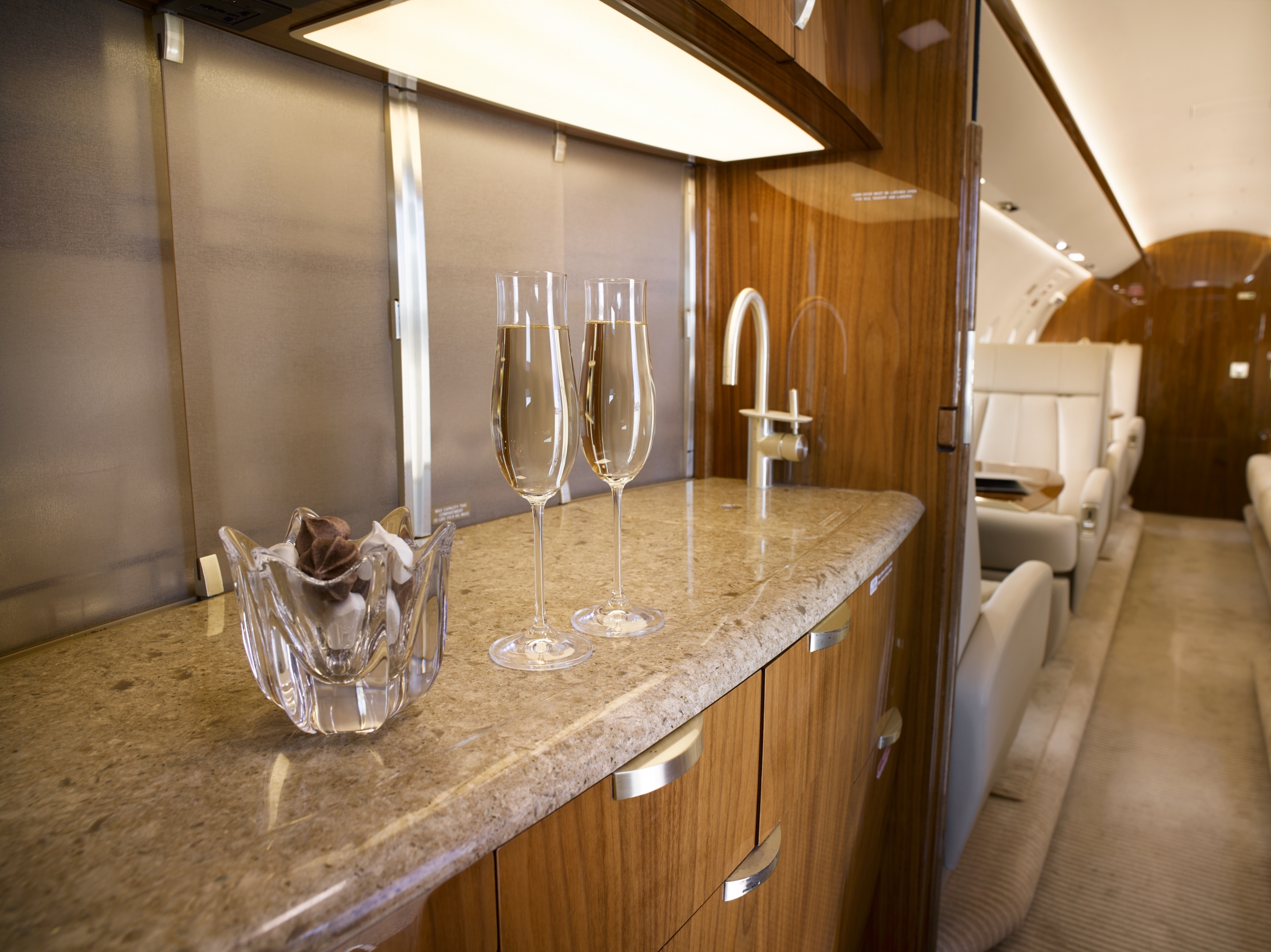

• The Forward Right-Hand Galley with Sink Hot/Cold Water Faucet, & Sink Cover, Storage for Water Bottles, Cans, Large Ice Drawer with manual Drain, Waste Container Drawer, Manual Fill Coffee maker, Convection Oven, Pull-Out Work Surface, Cooled Storage Compartment with 3 Adjustable Removable Trays, 115/60HZ Universal Outlet
• Gulfstream Cabin Management System (CMS) controls the entire cabin environment from this master panel
• There is also an app available allowing passengers to configure the cabin environment, such as lighting and cabin temperature, from the comfort of their seat 9using I-phone / I-pod
• Rosen Dual Slot Blu-ray DVD/CD Player with 2 USB Ports, 2 Rosen 19-Inch Widescreen HD LCD Monitor Flush Mounted in the Left-Hand FWD & AFT Bulkhead
• HDMI Jack for Input to the Gulfstream Audio Video Distribution System (AVDS)
• Airshow 4000 CabinView Passenger Flight Information System providing Flight Plan Animation, Night Imagery, Multiple Map Perspectives (Above Aircraft View, Above and Behind View, Side View and Aft fly By View), Additional 115V/60HZ Outlets, USB Charge Ports located in the Divan End Cabinets and the Ledge at the Single Seat Locations
• Intl Comm Group ICG-NXT LINKL 220A Iridium Satcom with 2 Voice Channels and 3 Handsets

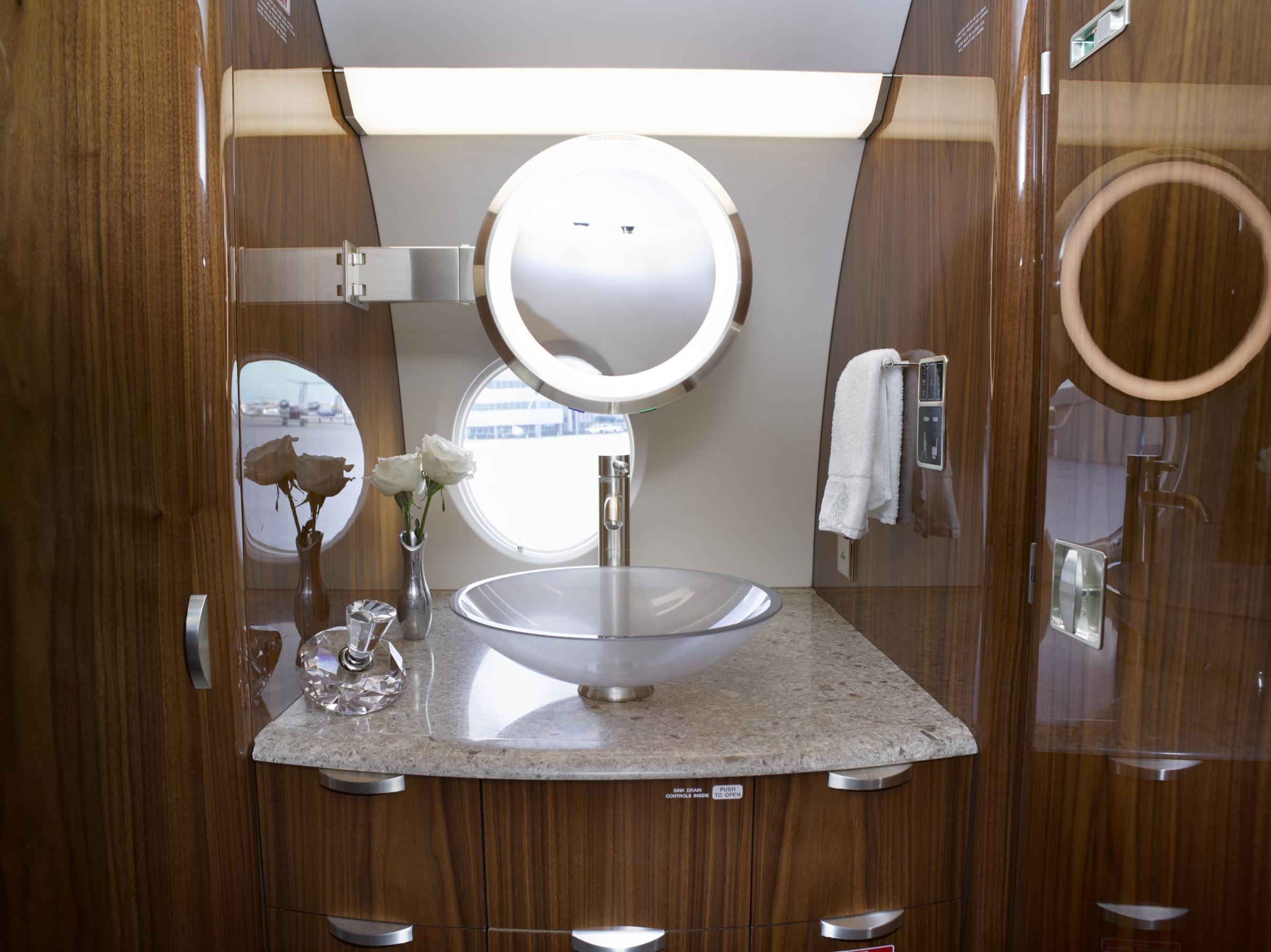

• Aft Lavatory with Vacuum Toilet, Vanity Cabinet, Waster Container, Sink with Faucet with Hot / Cold Water, Miscellaneous Storage in Cabinet
• Aft Baggage Compartment – storage capability up to 120 cubic feet of baggage with 1980 lbs. max weight limit – with In-Flight Inside Access Below 40,000 Feet and Outside Fuselage Access

EXTERIOR:

• Overall Matterhorn White with Aristo blue, Blue Pearl & Taxco Silver Accent Stripes

BRIEF HISTORY:

• One Owner Since New – Private Use Only (No Charter)
• Always Hangared
• No Damage History
• SB 72-9045 Tower Shaft Bearing & SB 9080 Rev. 1 #4 Roller Bearing
• Gulfstream Factory Maintenance

This aircraft is being brokered by East Coast Jet Center, Inc. Prospective purchasers are encouraged to conduct their own independent prepurchase inspection as East Coast Jet Center, Inc. makes no representations as to the airworthiness of the aircraft or the accuracy of the above information. Specifications subject to verification upon inspection. Aircraft subject to prior sale.
